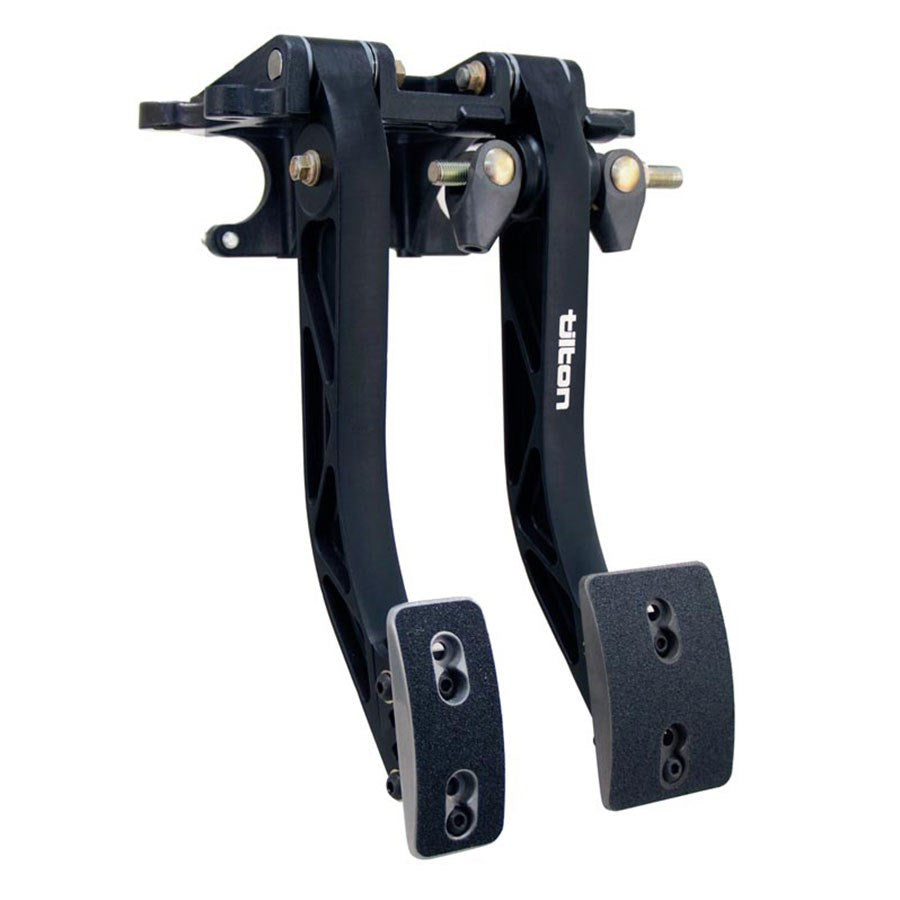

Tilton 600 Series Firewall-Mount Aluminum Pedal Assembly

*Price includes applicable Duties and GST*

  • Sale
  • Regular price $699.00
Tax included.


Tilton’s 600-Series overhung-mount aluminum pedal assembly features traditional fixed-mount master cylinder and balance bar technology and provide excellent performance at competitive prices.

Features:

  • Forged aluminum pedals are engineered for high rigidity and low weight.
  • Adjustable pedal ratio (5.0:1 – 6.2:1) enable the brake pedal to be tuned to driver preference without having to change master cylinder bore size.
  • Foot pads can be adjusted vertically, horizontally and in angle to suit individual driver preferences.
  • Large diameter 7/16”-20 balance bar provides maximum rigidity.  PTFE coated aluminum clevises for increased durability and reduced friction.
  • Pedal pivots feature wave washers to reduce lateral pedal movement and oil impregnated bronze bushings decrease stiction.
  • Lightweight aluminum frame features guide “ramps” to reduce balance bar tipping, decreasing friction and improving brake repeatability.
  • Weighs 4.8 lbs (does not include master cylinders)

Warning: Not designed for use with ABS systems.  See 800/850-Series Pedal Assemblies and 900-Series Pedal Assemblies.
