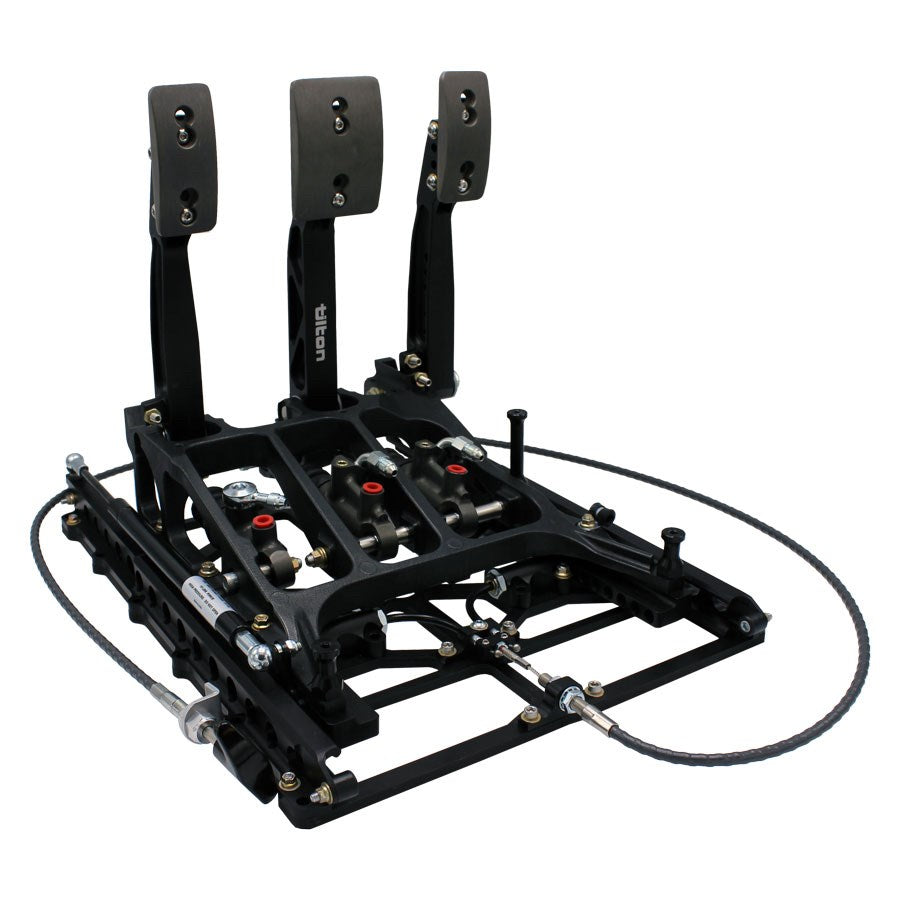

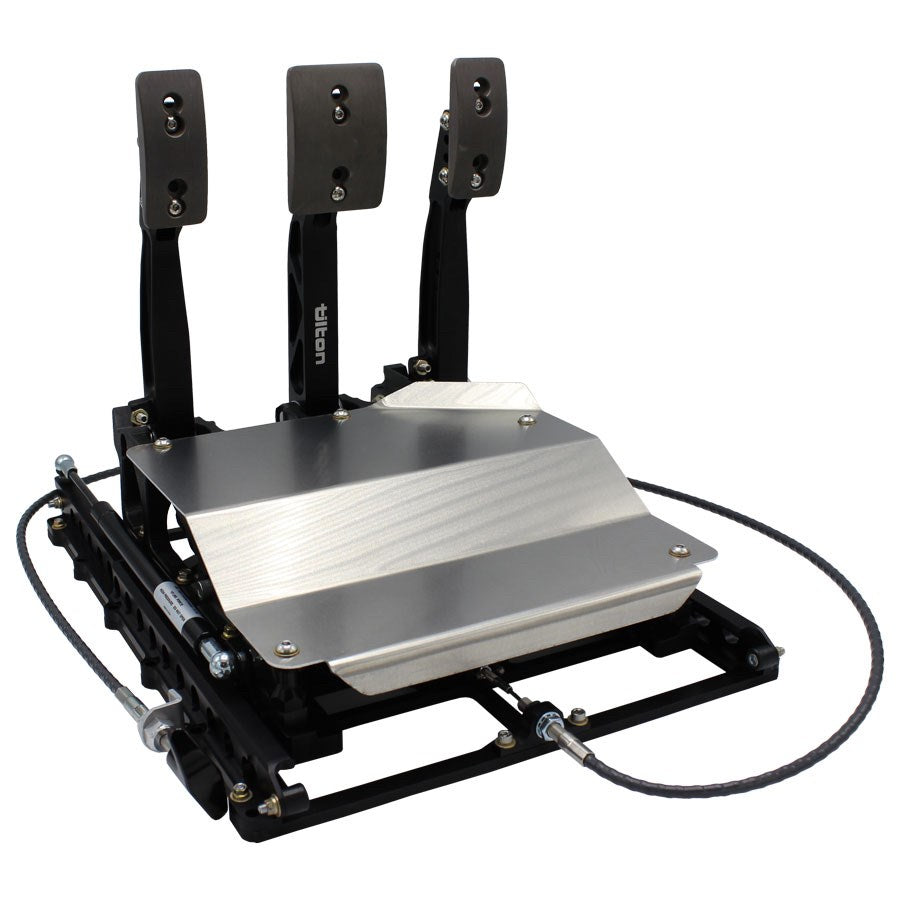

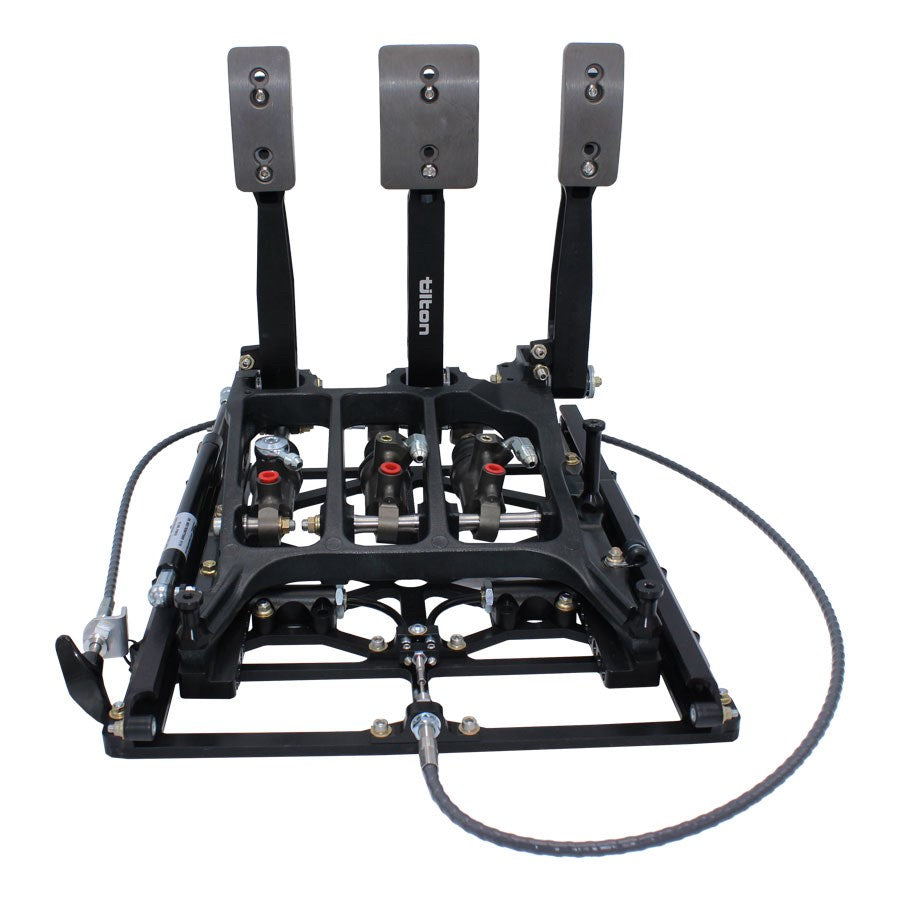

Tilton’s 850-Series 3-pedal Underfoot Pedal Assembly with Slider System is designed for racing series that have regulations that require fixed seat mounting, enabling the entire pedal box to be adjusted for driver changes during endurance race events. This pedal assembly is also ideal for any racing applications that have different height drivers sharing the same vehicle, such as racecar rentals or driving school cars.
Features:
- Ultra-efficient 7/16”-20 trunnion type balance bar virtually eliminates brake migration through braking zone
- Billet aluminum brake pedal with ball bearings in pivot
- Forged aluminum throttle and clutch pedal with oil-impregnated bronze bushing in pivot
- Lightweight and high-strength aluminum frame
- Adjustable pedal ratio (4.8:1 to 6.1:1) enables the brake pedal to be tuned to driver preference without having to change master cylinder bore size
- Foot pads can be adjusted vertically, horizontally and in angle to suit individual driver preferences
- Throttle linkage kits options for mechanical linkage and Drive-by-Wire systems (sold separately)
- Weighs 14.4 lbs (does not include master cylinders)
Master Cylinders (sold separately):
Brakes: 78-Series or 79-Series master cylinders
Clutch: 78-Series master cylinders
