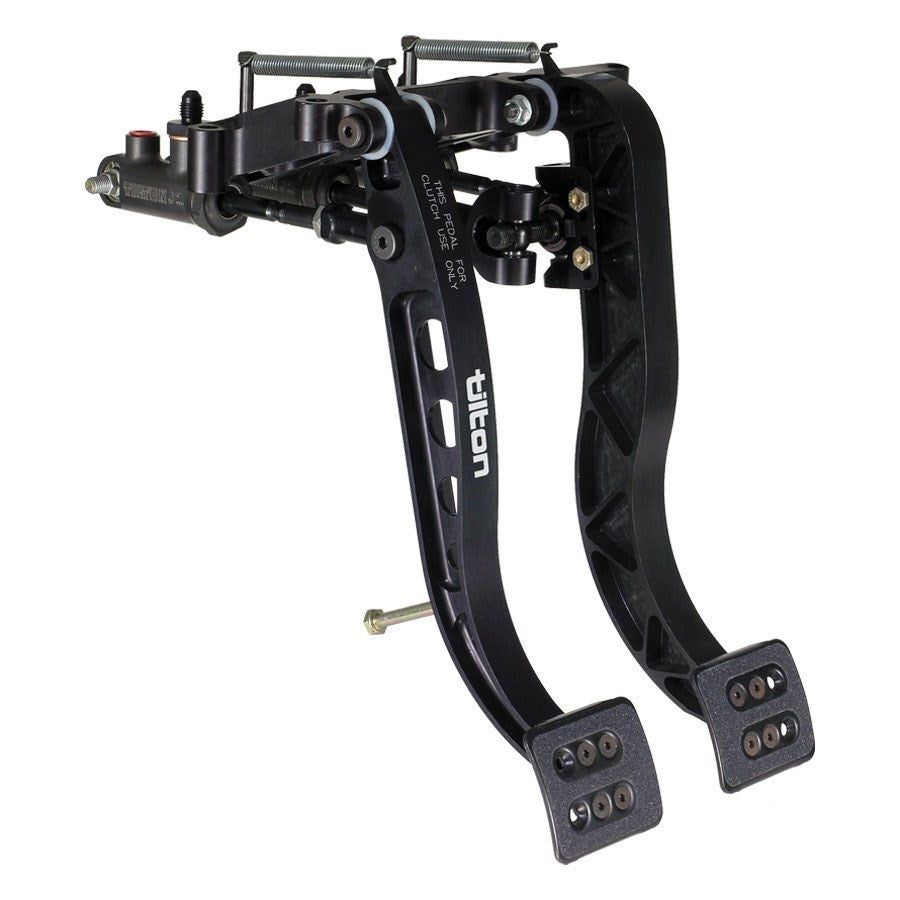

Tilton’s 900-Series pedal assemblies feature the latest in pivot-mount master cylinder technology that offers the ultimate in balance bar efficiency, providing exceptional driver feedback and repeatable braking. Pedal assemblies are available in floor-mount, firewall-mount and overhung configurations.
Features:
Pivot-mount master cylinders and fixed “gimbal-type” balance bar virtually eliminates the common problem of brake bias migration through braking zone.
Billet aluminum frame and clutch pedal with adjustable foot pads and anti-slip surface.
Billet steel brake pedal with adjustable foot pads and anti-slip surface (meets NASCAR rules).
Adjustable pedal ratios (4.7:1, 5.5:1, 6.2:1) enable the brake pedal to be tuned to driver preference without having to change master cylinder bore size.
7/16”-20 balance bar provides maximum rigidity. Integrated angle limit in case of front or rear brake circuit failure. Longer clevis for increased front master cylinder stroke.
Needle bearings utilized at all pedal pivots.
Adjustable clutch pedal stop prevents clutch over-stroking.
Compatible with Tilton’s firewall plate (pictured; sold separately).
Weighs 4.9 lbs (does not include master cylinders)
