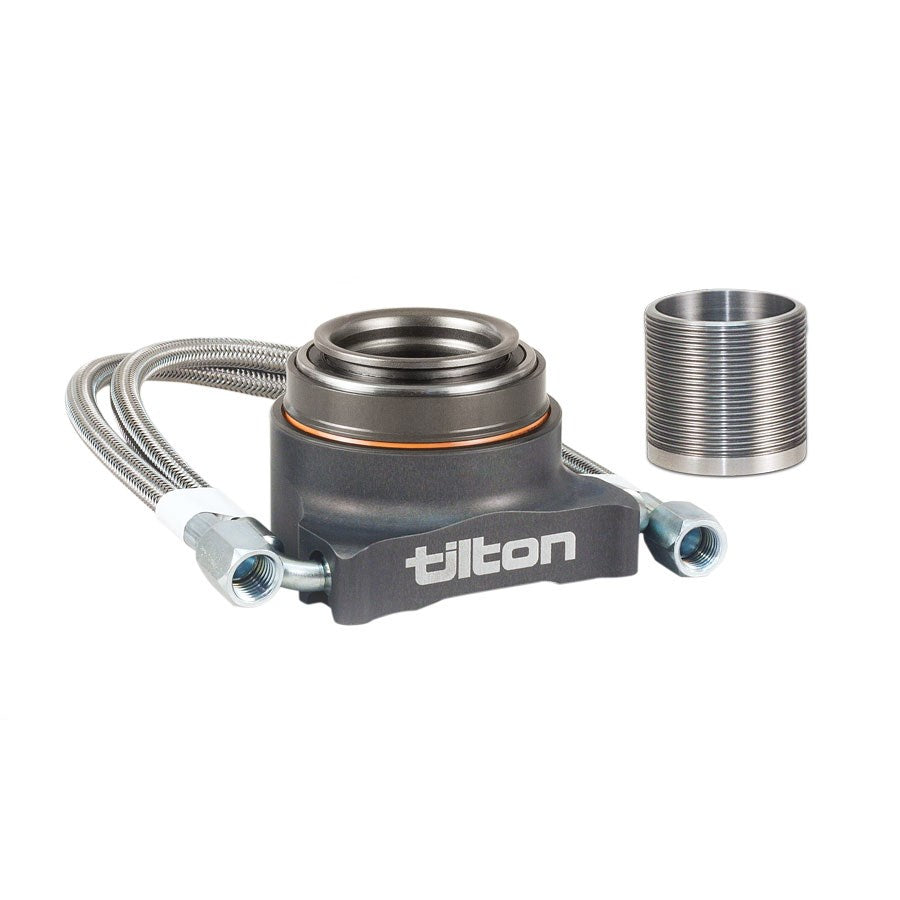

Tilton’s 6000-Series hydraulic release bearings (also known as hydraulic throwout bearings or concentric slave cylinders) feature race-proven Tilton reliability for the street. These hydraulic release bearings have been designed for ease of installation and maximum reliability, at a very competitive price. 6200-Series hydraulic release bearings are designed to mount onto the transmission input shaft bearing retainer, and are compatible with a variety of transmission types.
Tilton’s 6200-Series hydraulic release bearings feature a 44mm (1.75″) radius-face contact diameter bearing for use with flat-finger clutch diaphragm springs. Designed for use with Tilton 7.25” clutches, and suitable for use with many non-Tilton 5.5″ & 7.25″clutches
| Application | Transmission | Height Adjustment (inches) |
Part Number |
|---|---|---|---|

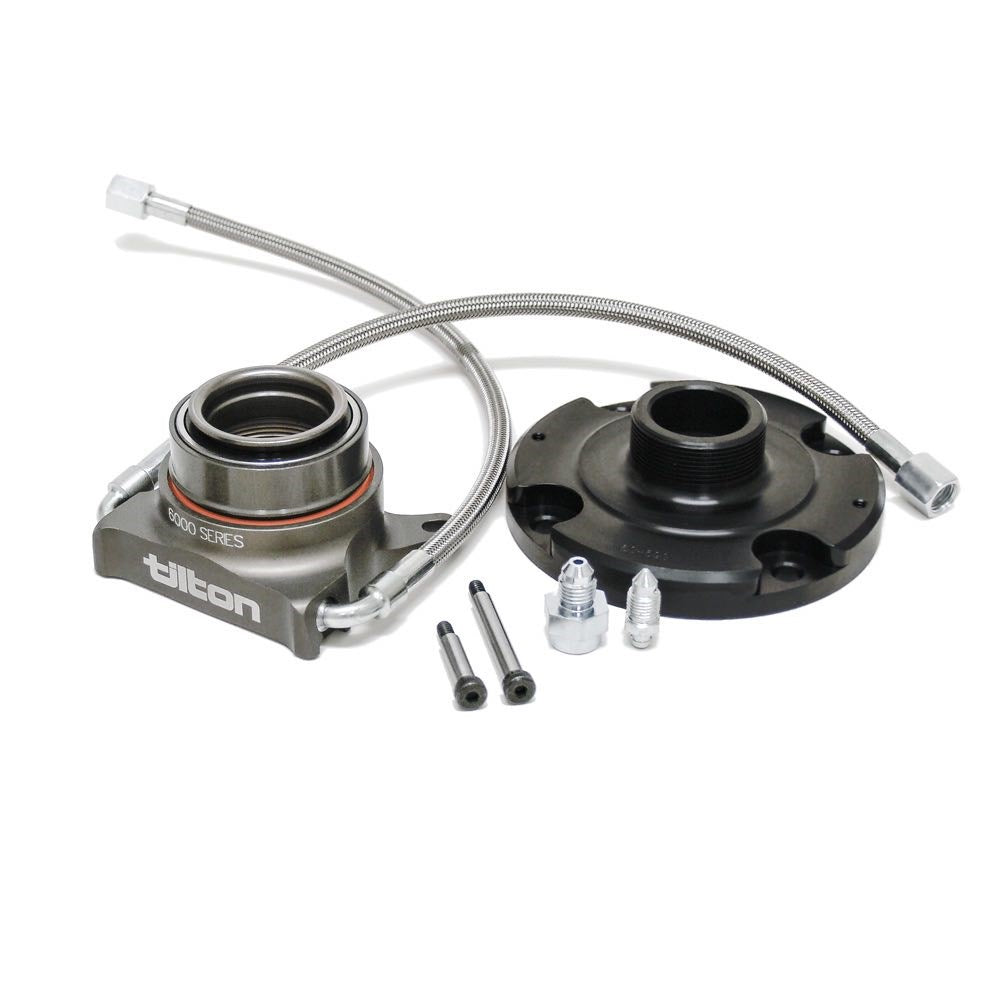

| Chevy SB/BB | Tremec TKO/500/600 | 2.88 - 3.13** | 60-6236 |
| Chevy LS/LT | Tremec TKO/500/600 | 2.15 - 3.38* | 60-6231 |

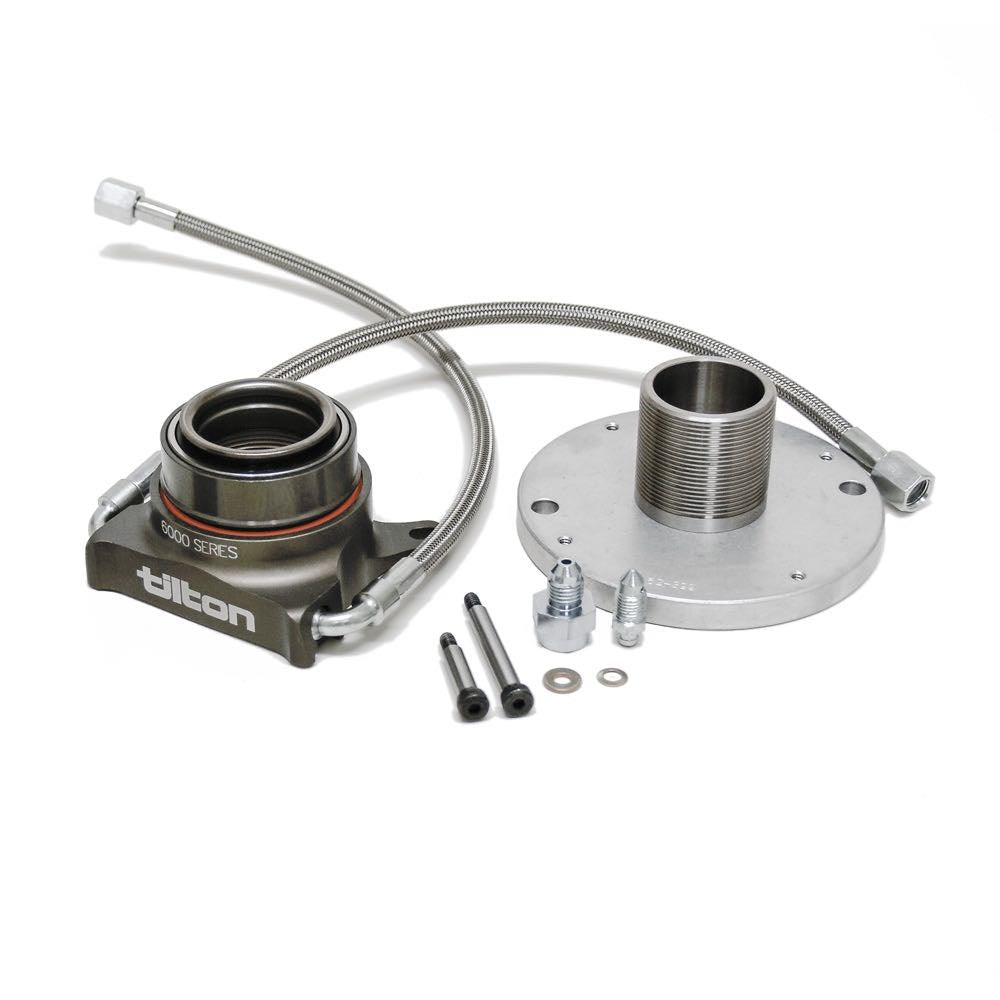

| Chevy | Tremec T56 Magnum | 2.54 - 3.51** | 60-6235 |
| Chevy | Tremec TR6060 | 2.66 - 3.63** | 60-6241 |
| Chevy | Borg-Warner/Tremec T5 | 2.15 - 3.38* | 60-6233 |

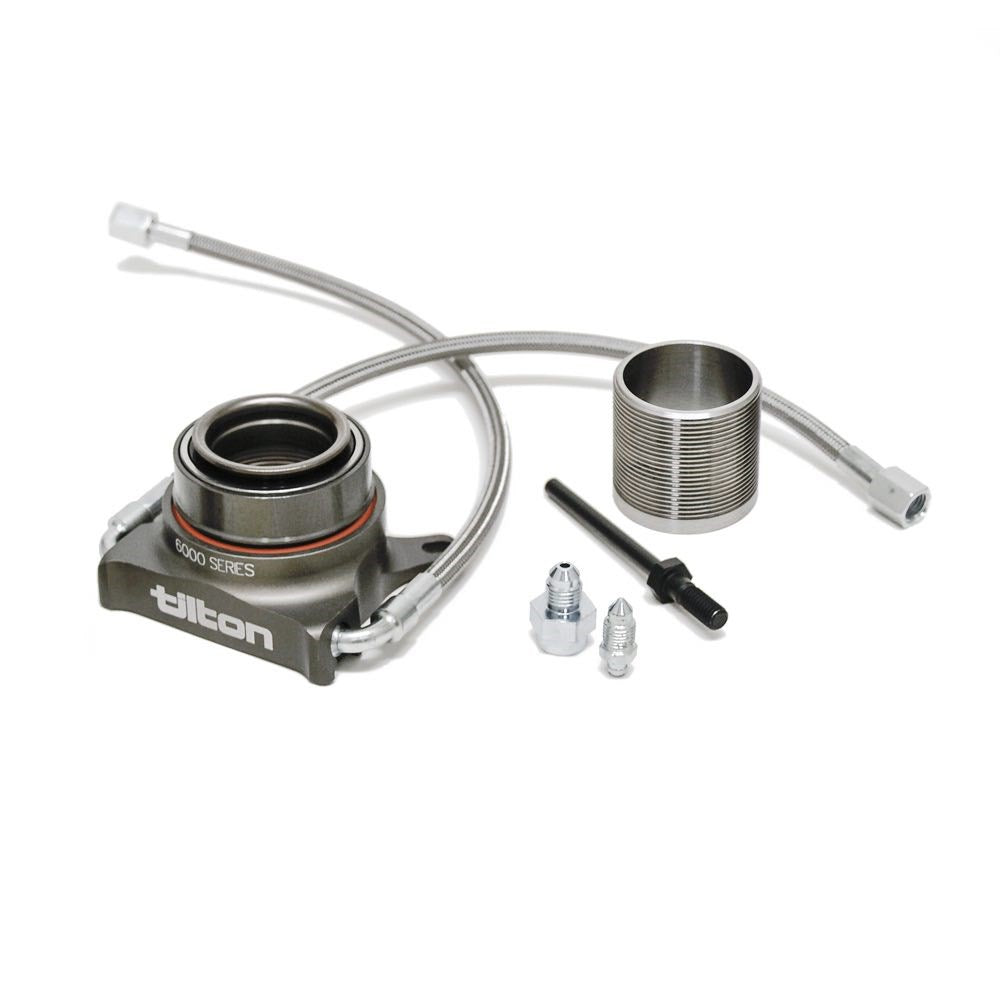

| Ford | Tremec TKO/500/600 | 2.15 - 3.38* | 60-6232 |
| Ford | Tremec T56 Magnum (Pilot tube mount) | 2.15 - 3.38* | 60-6234 |
| Ford | Tremec T56 Magnum (2-bolt plate mount) | 2.54 - 3.51* | 60-6235 |
| Ford | Top Loader (1 1/16 x 10 spline) | 2.15 - 3.38* | 60-6232 |
| Ford | Borg-Warner /Tremec T5 | 2.15 - 3.38* | 60-6234 |
*Height adjustment on included sleeve that fits onto tube of input shaft bearing retainer. Does not include height of retainer base.
** Height adjustment on included mounting base. Dimension is form mating face of transmission to top of bearing.
