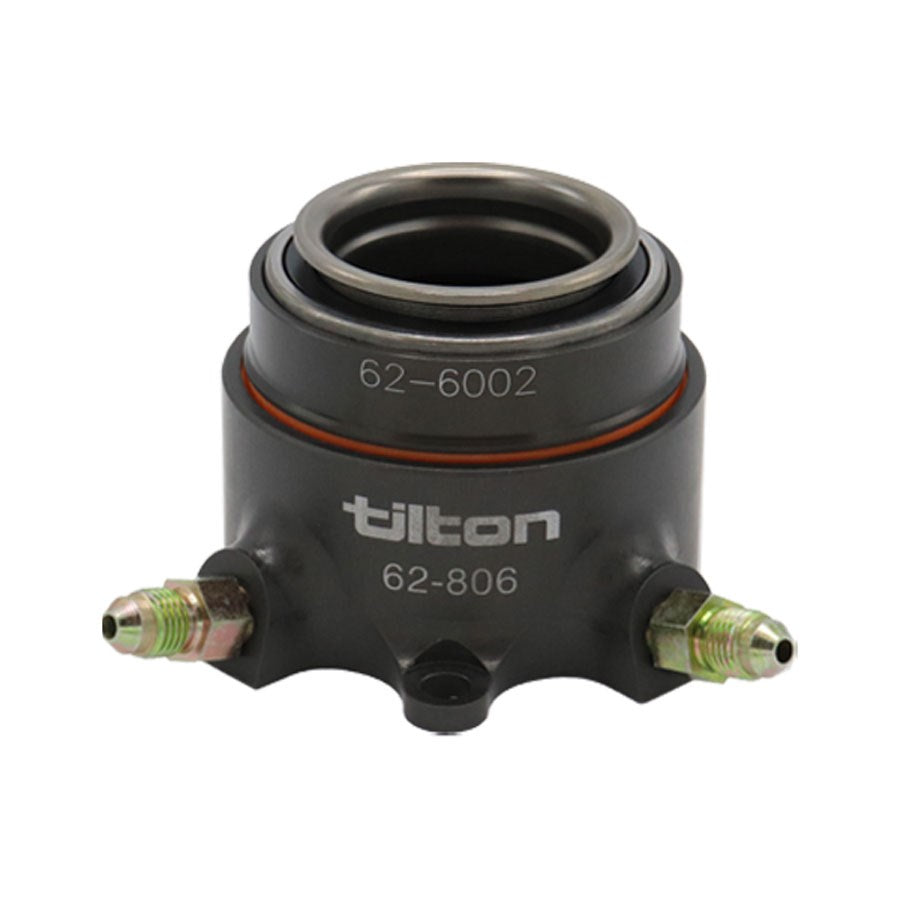

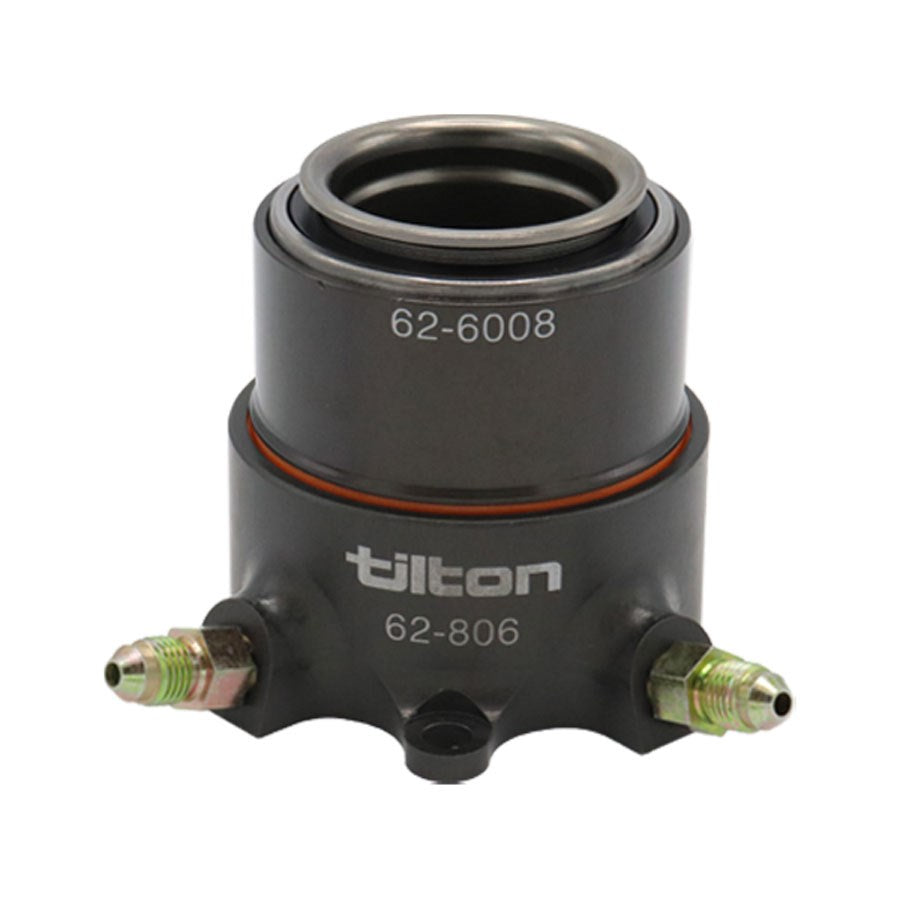

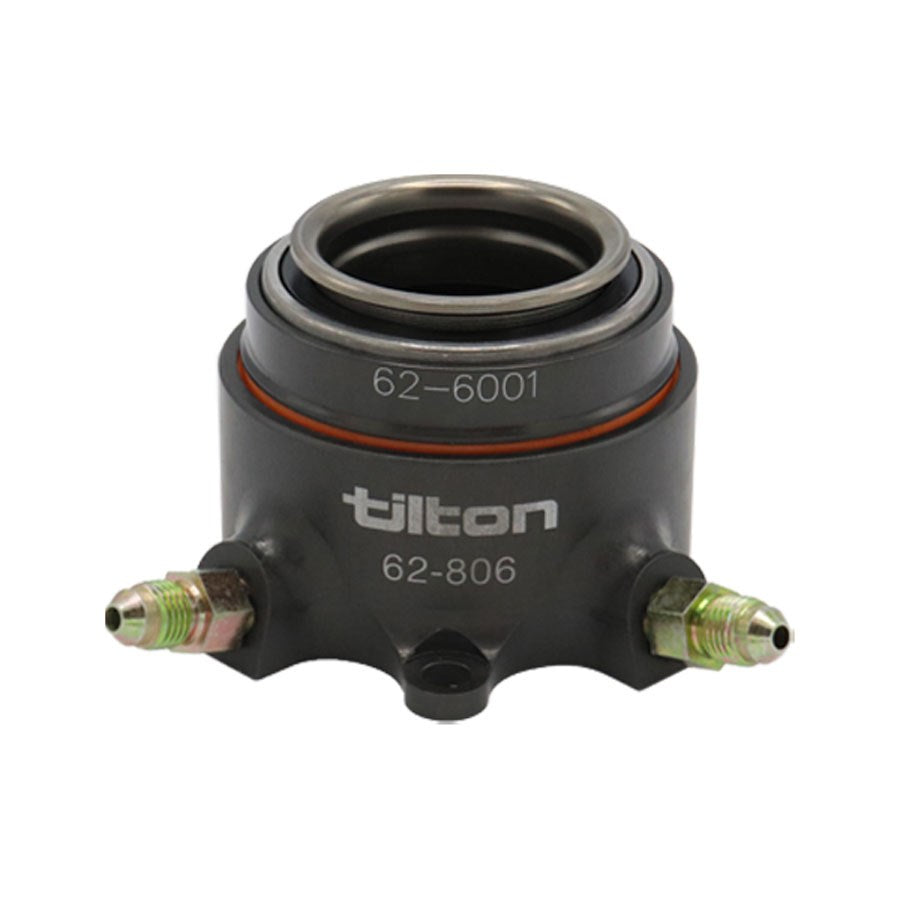

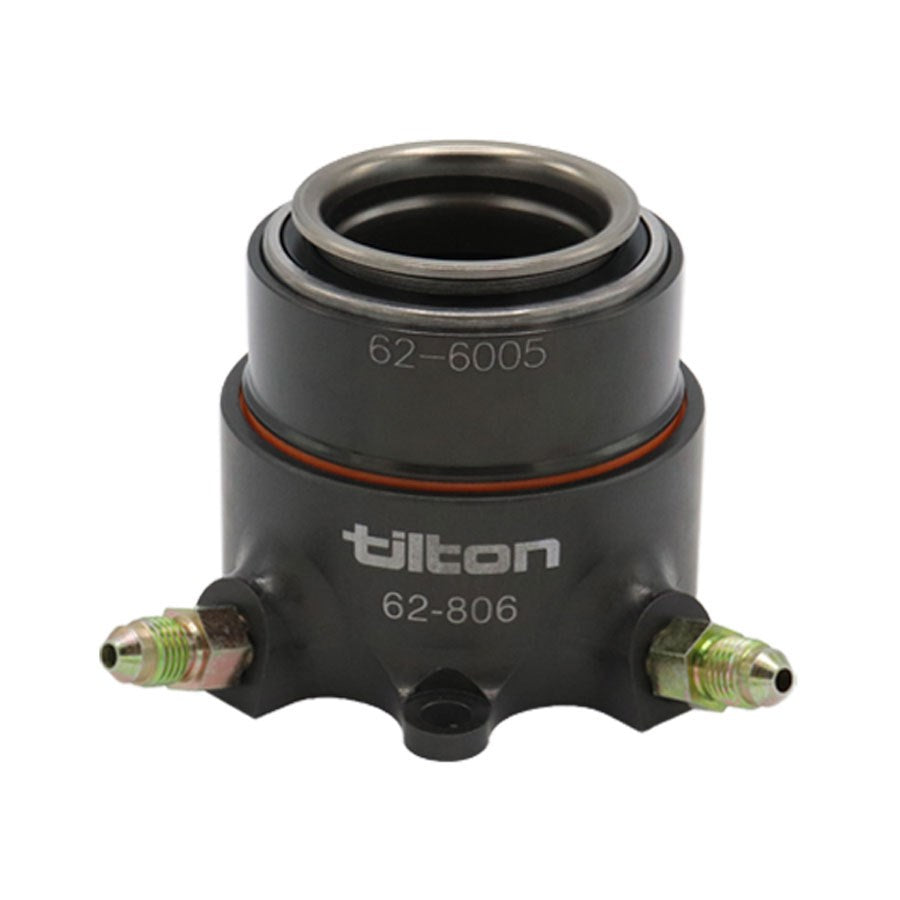

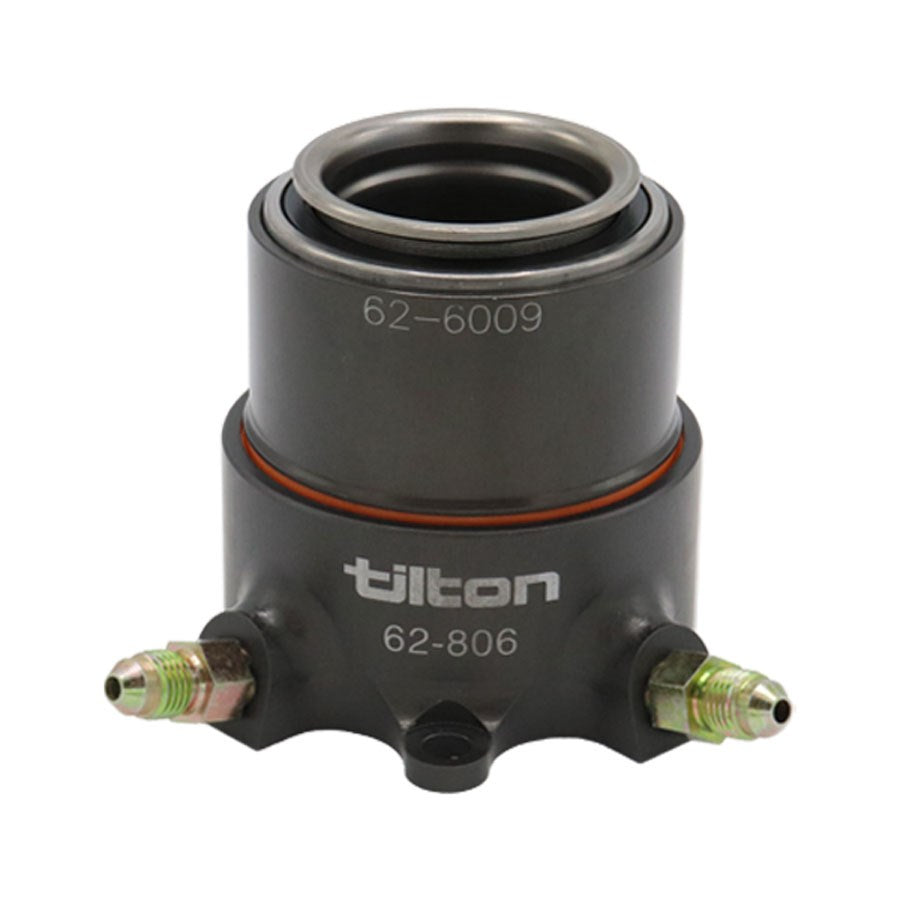

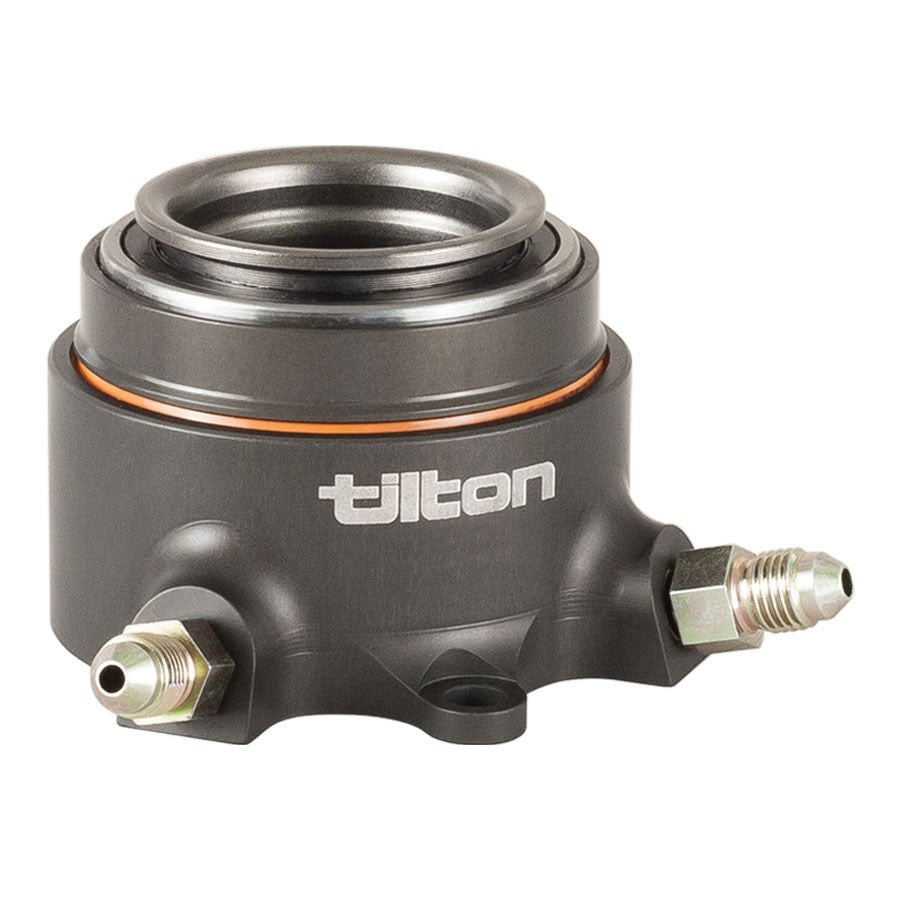

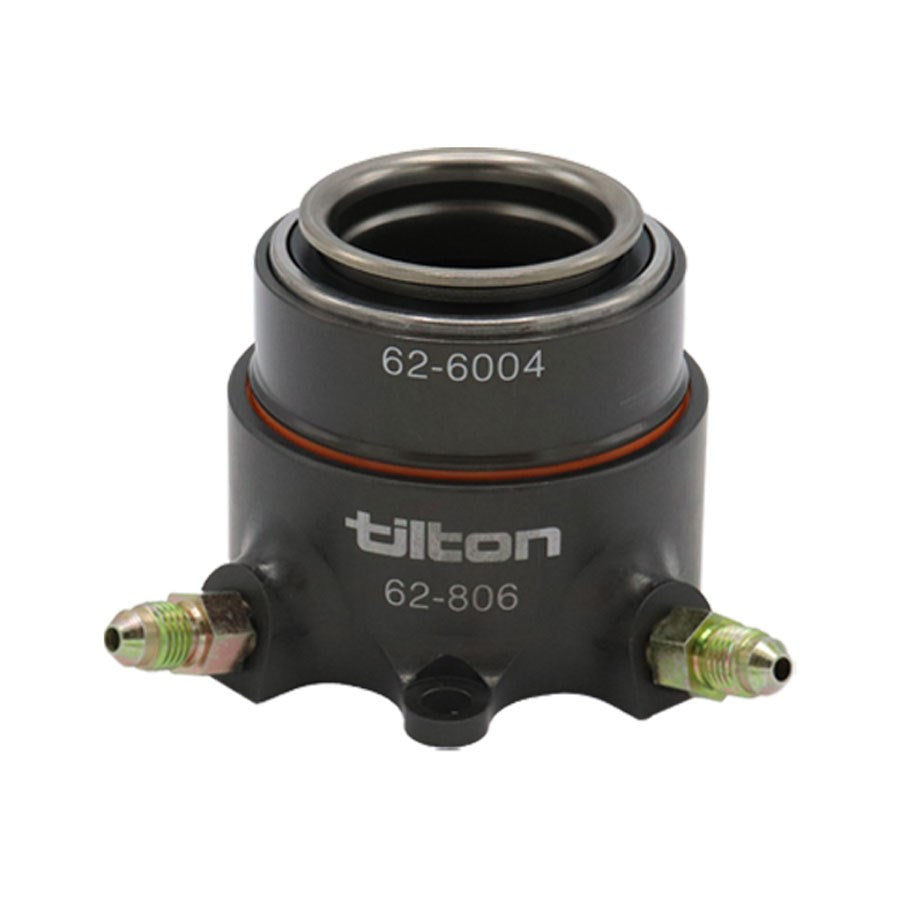

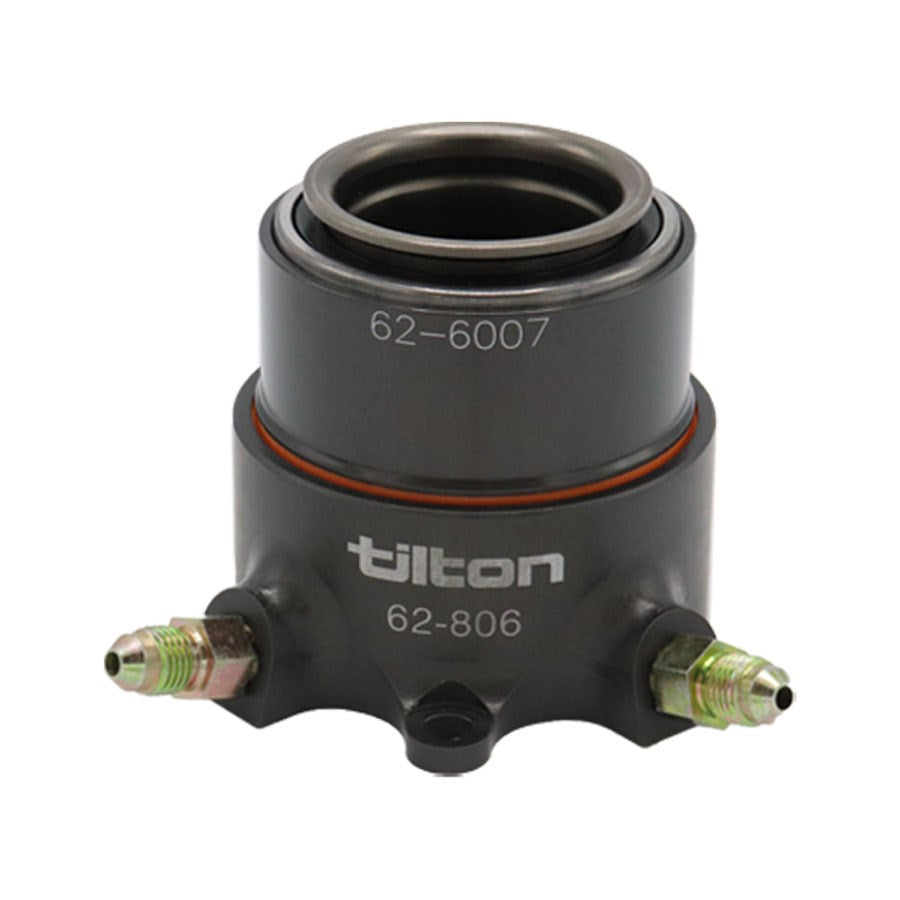

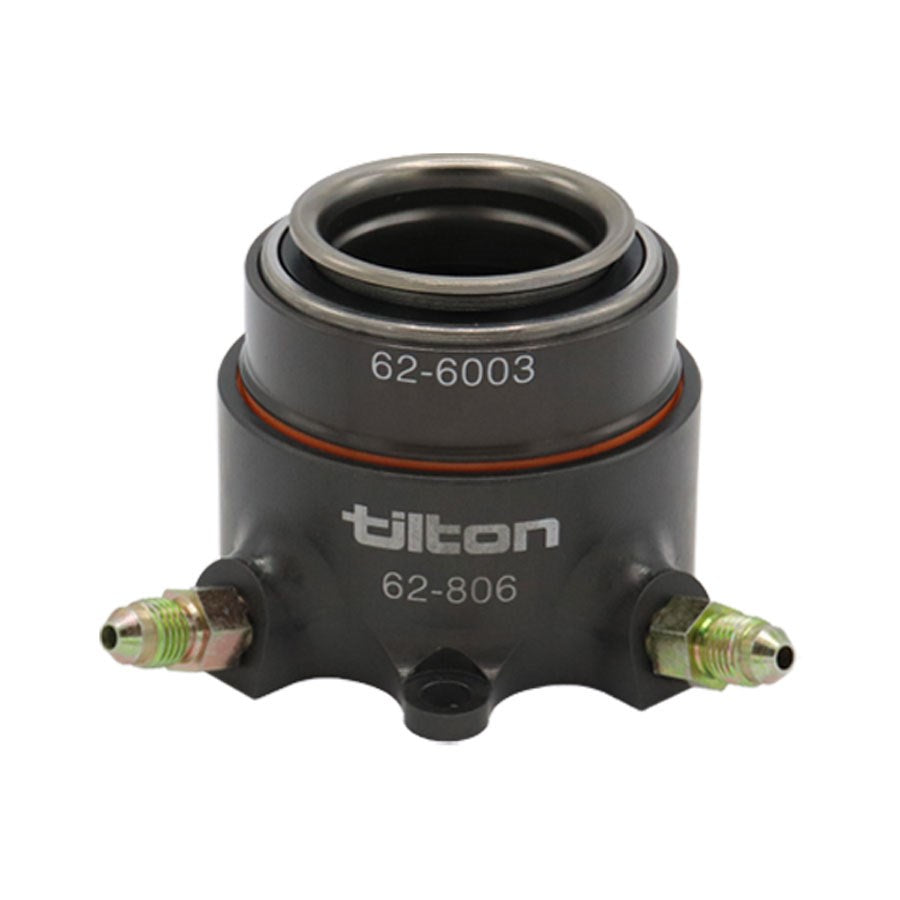

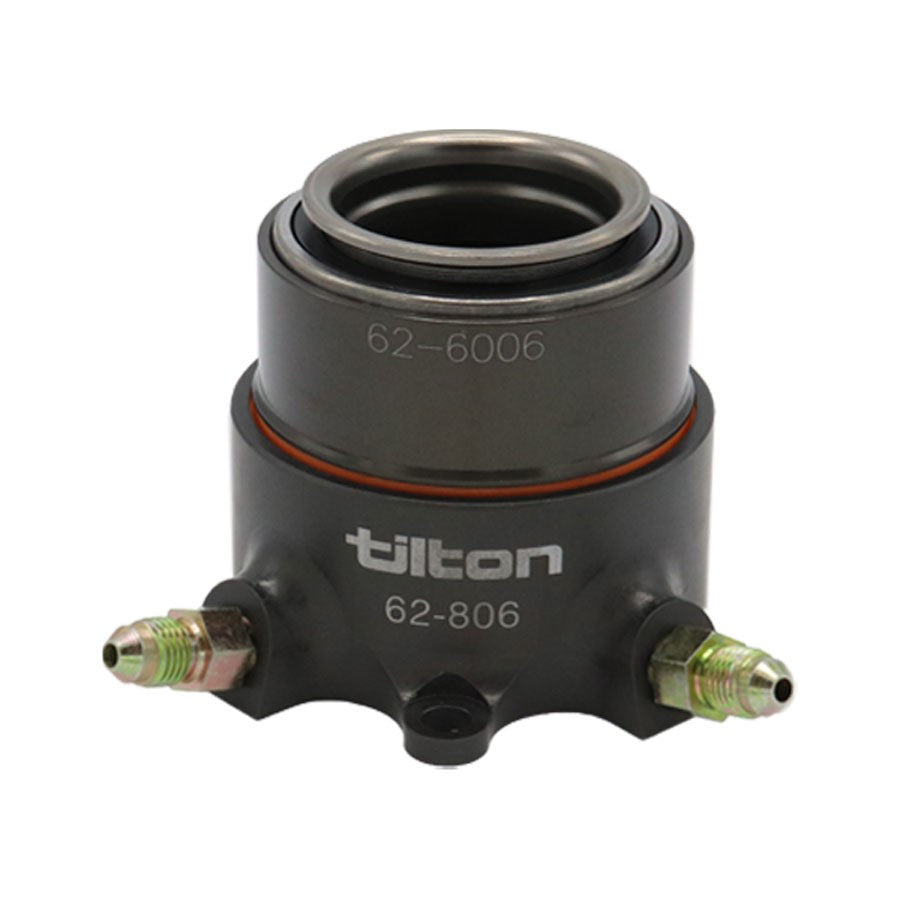

Tilton’s 8200-Series hydraulic release bearings feature a 44mm (1.75″) radius-face contact diameter bearing for use with flat-finger clutch diaphragm springs. Designed for use with Tilton 7.25” clutches, and suitable for use with many non-Tilton 5.5″ & 7.25″clutches, the low-profile 8200-Series hydraulic release bearings are designed to be bulkhead mounted inside transmission/bellhousing.
Mount: 2-bolt pattern
Weight: .70 lbs
Application: 5.5″ – 7.25″ clutches
Contact: 1.75″ (44mm)
Bearing type: Radius-face
Body and piston material: Billet aluminum
Piston area: 1.215 in2 (784mm2)
Maximum stroke: .700″ (17.8mm)
Ports: AN-3 (3/8″-24)
Included in kit: AN-3 fittings (2)
Typical applications: Low-profile bellhousing mount, often with adapter
