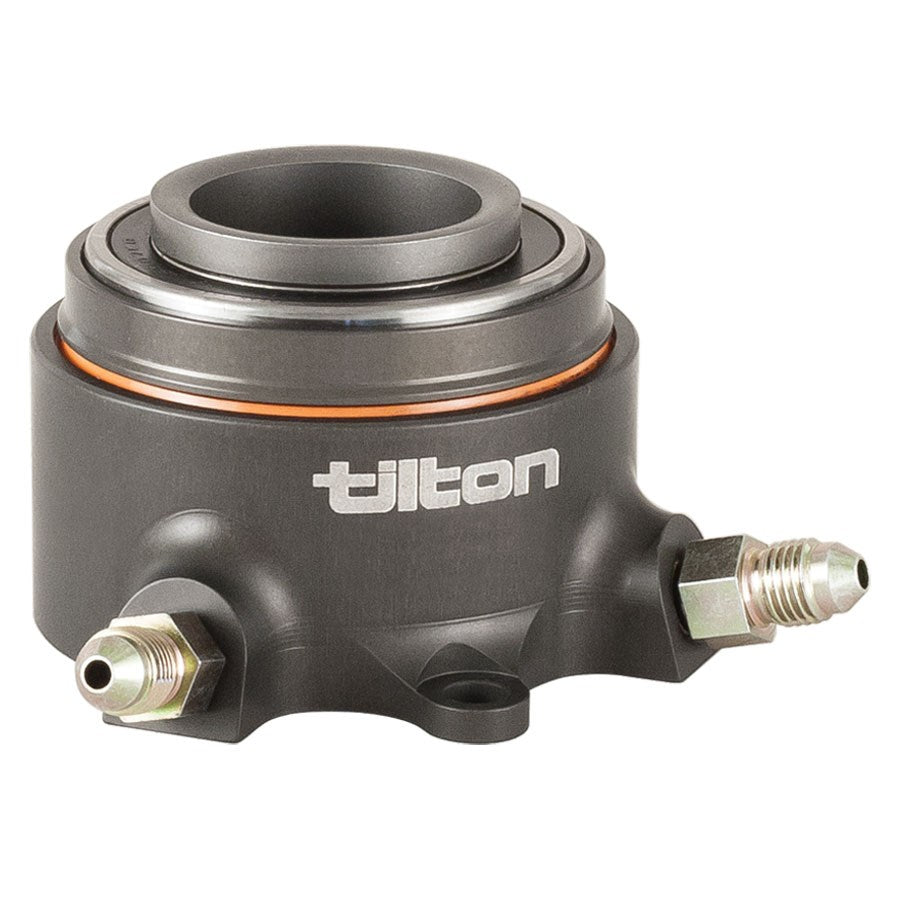

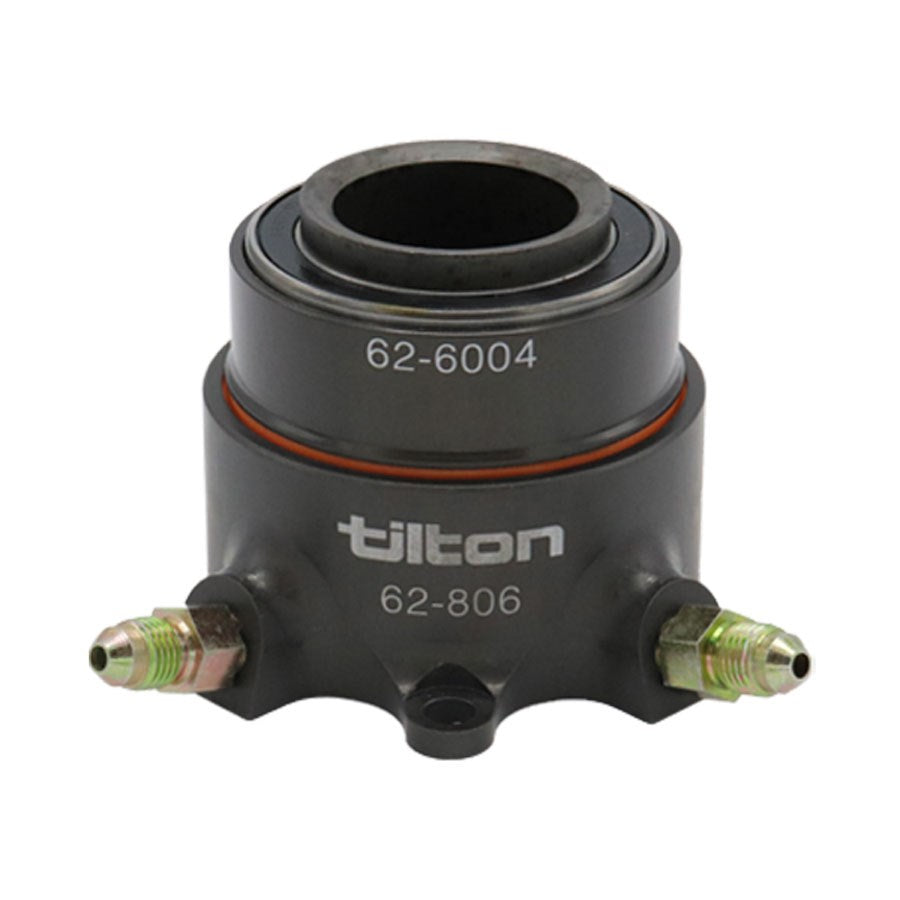

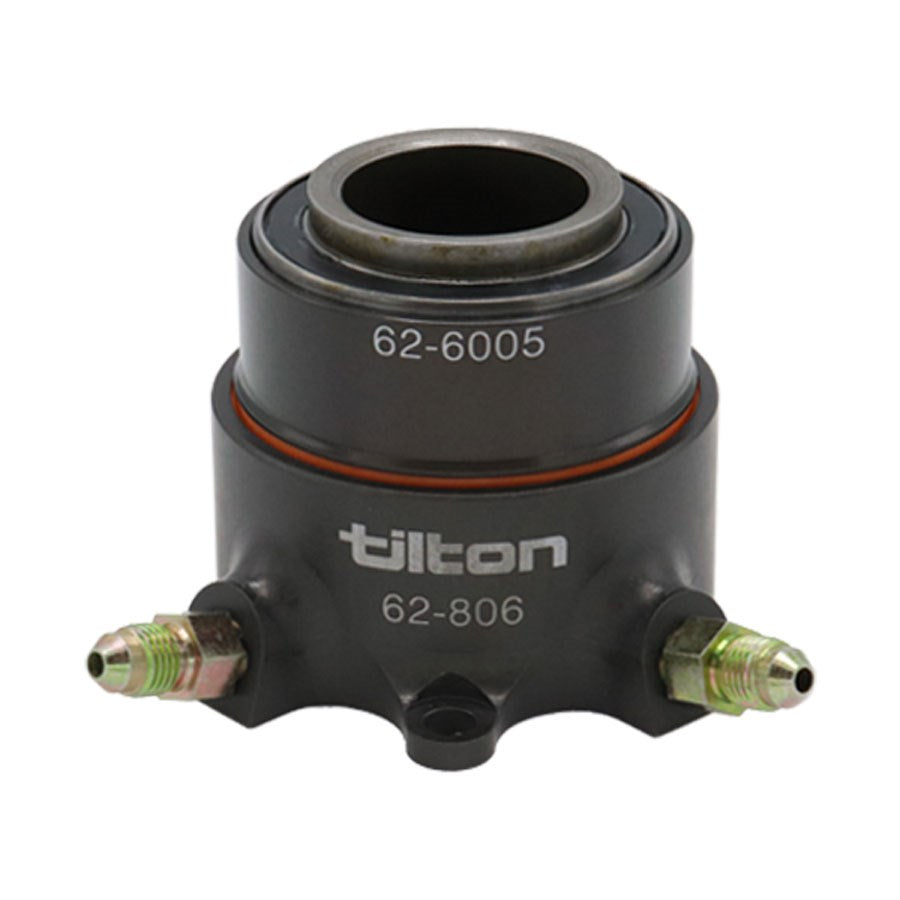

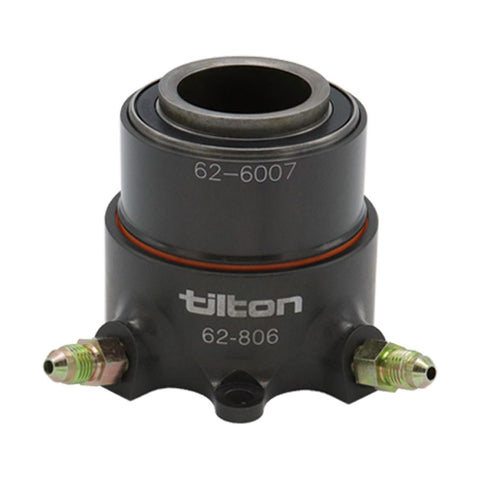

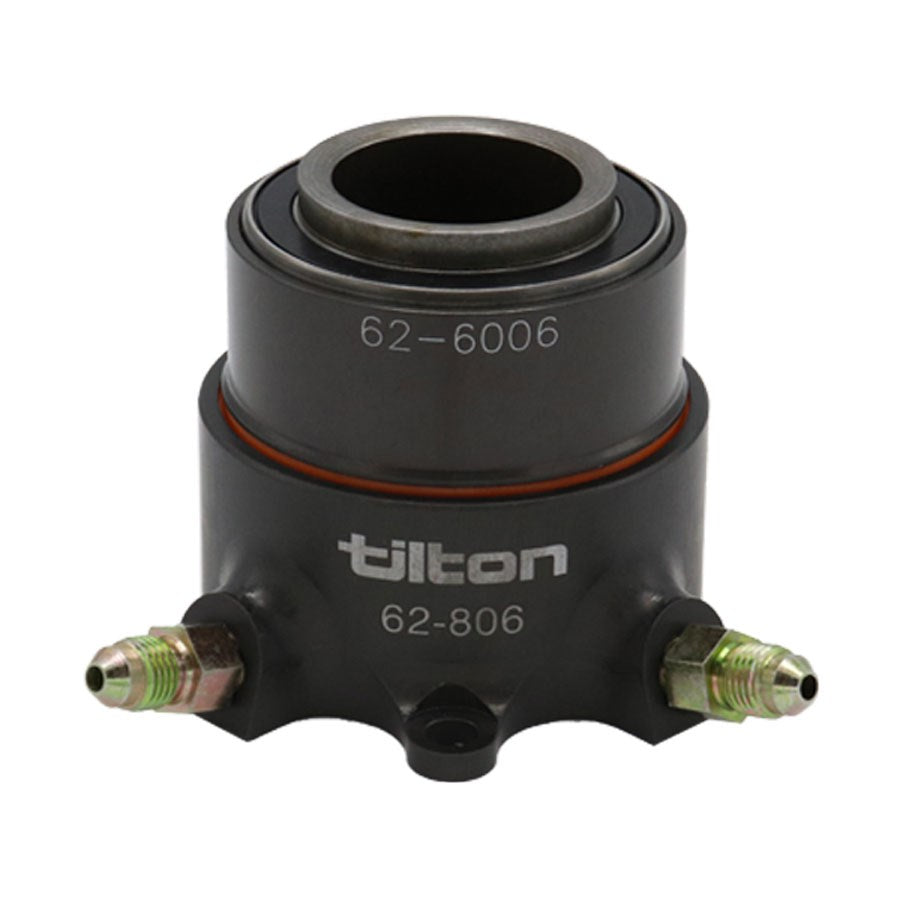

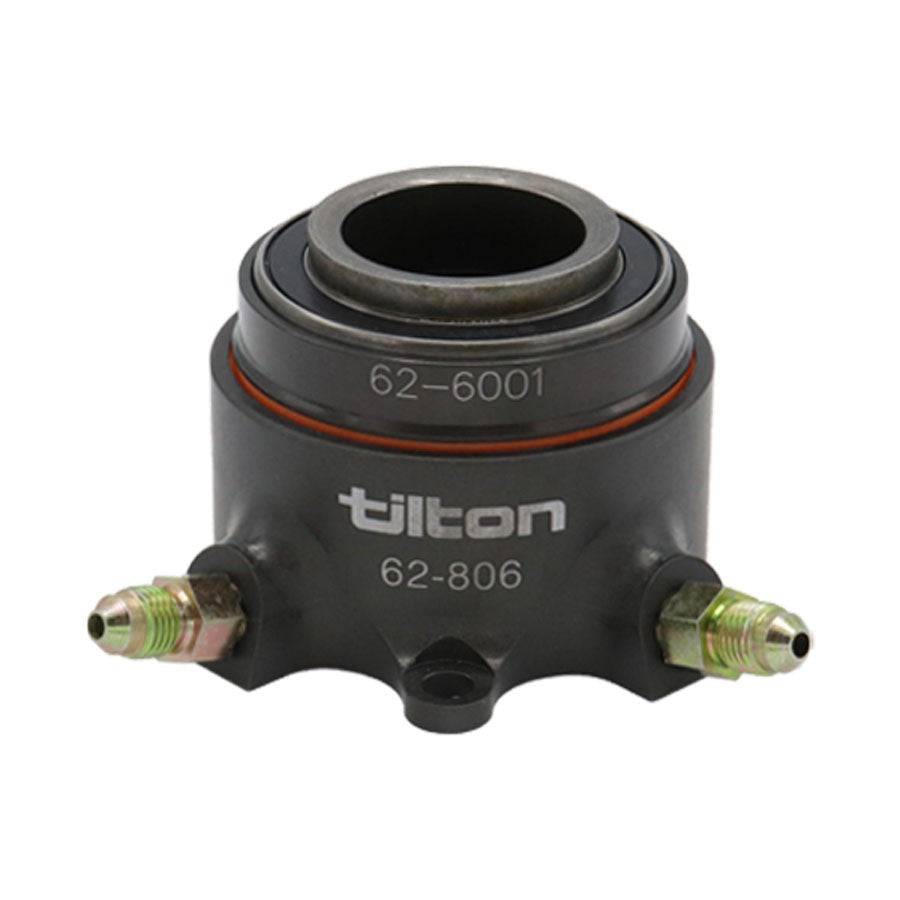

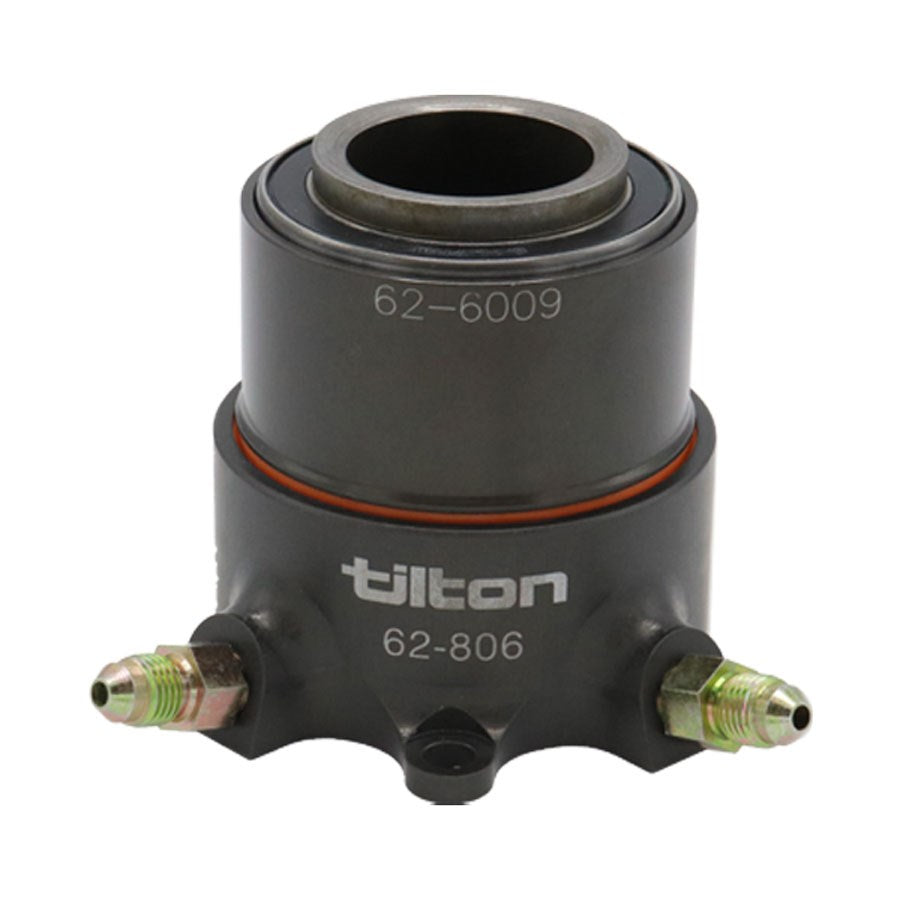

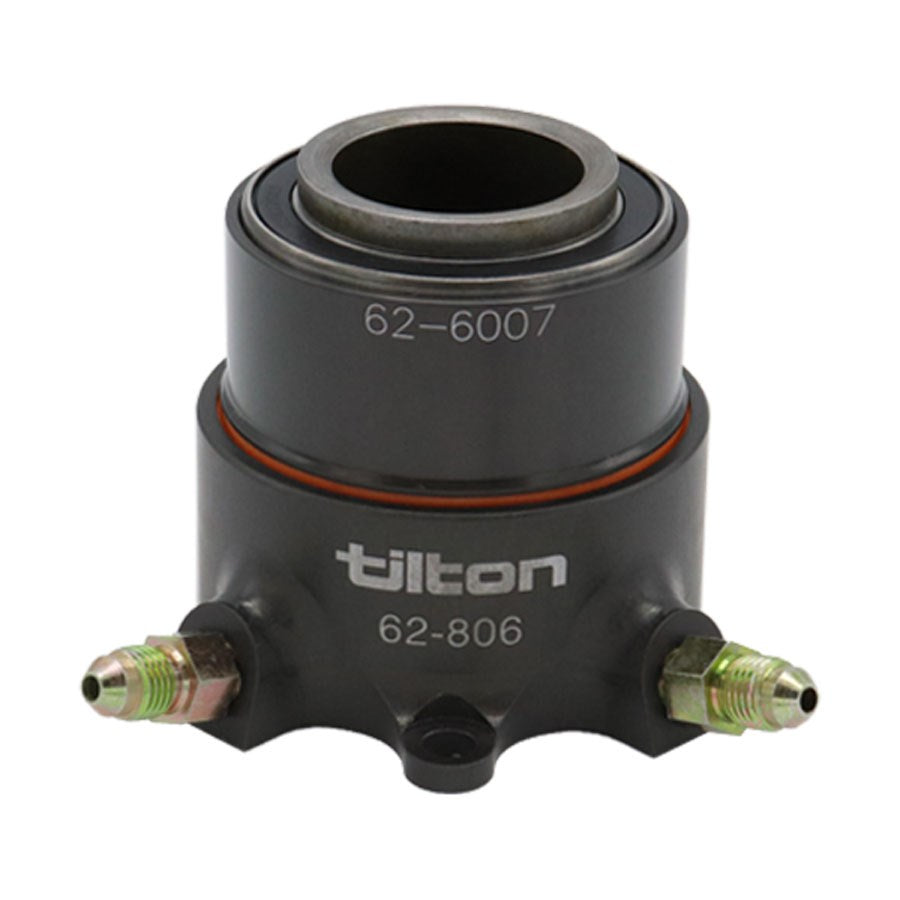

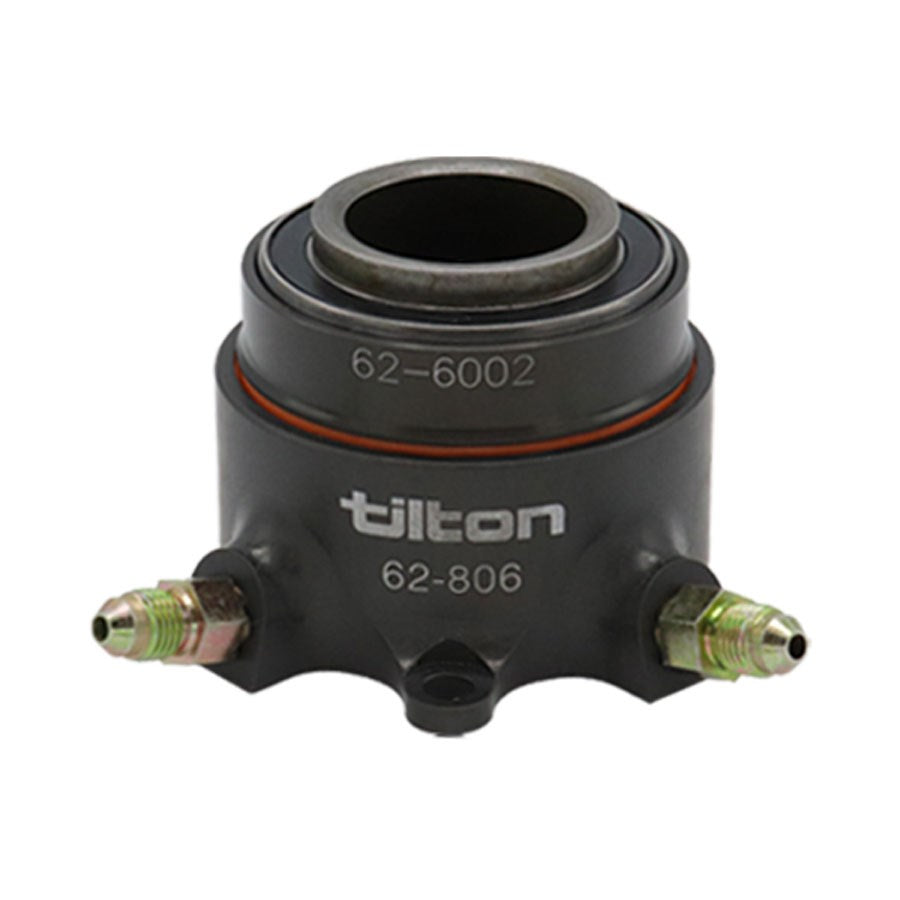

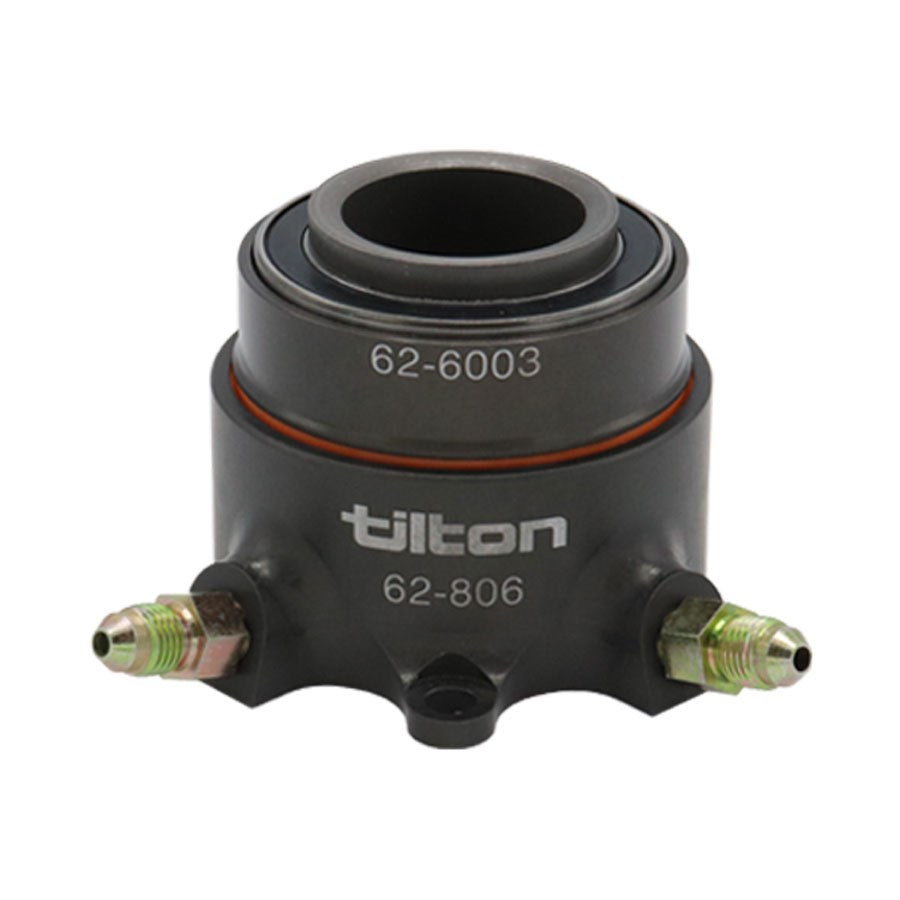

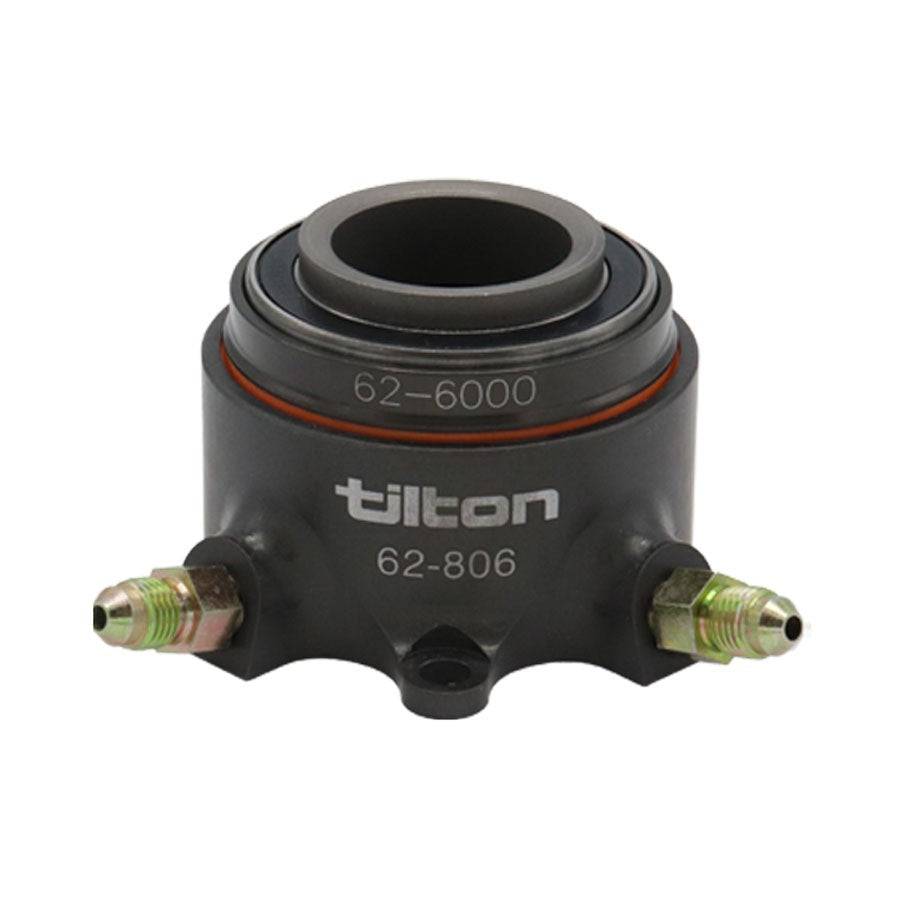

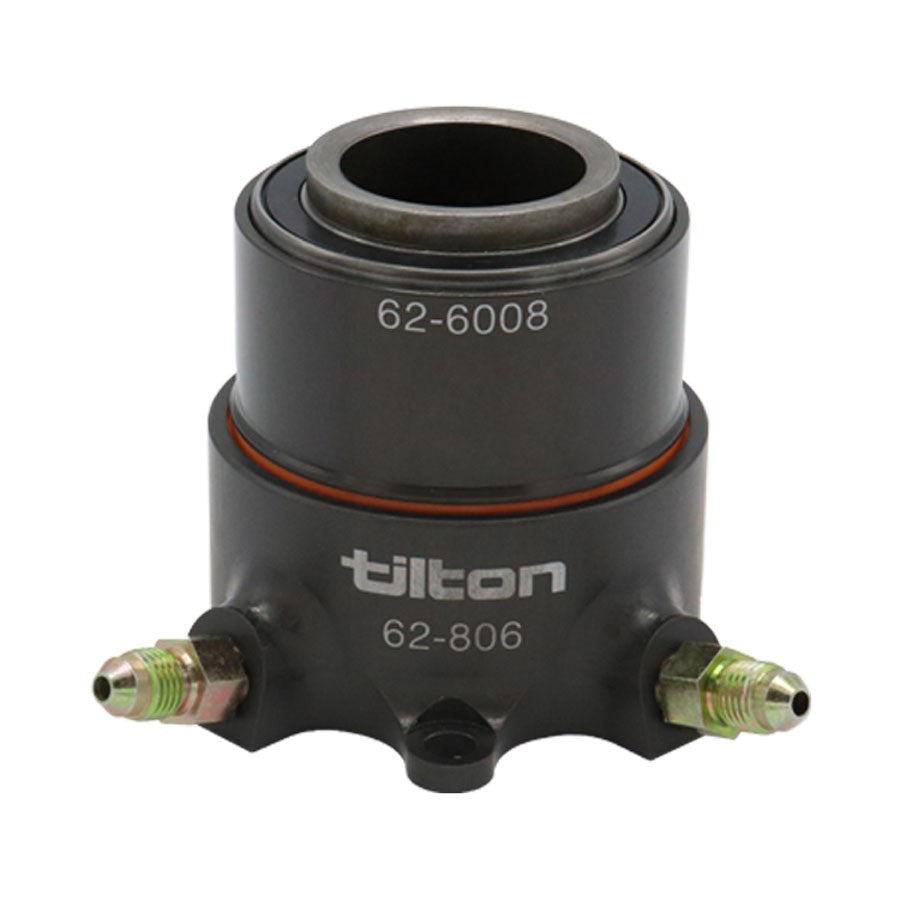

Tilton’s 8300-Series hydraulic release bearings feature a 38mm (1.50″) radius-face contact diameter bearing for use with flat-finger clutch diaphragm springs. Designed for use with Tilton 4.5” & 5.5” clutches, and suitable for use with many non-Tilton 4.5” & 5.5″ clutches, the low-profile 8300-Series hydraulic release bearings are designed to be bulkhead mounted inside transmission/bellhousing.
Mount: 2-bolt pattern
Weight: .75 lbs
Application: 4.5″ – 5.5″ clutches
Contact: 1.50″ (38mm)
Bearing type: Radius-face
Body and piston material: Billet aluminum
Piston area: 1.215 in2 (784mm2)
Maximum stroke: .700″ (17.8mm)
Ports: AN-3 (3/8″-24)
Included in kit: AN-3 fittings (2)
Typical applications: Low-profile bellhousing mount, often with adapter
